Manufacturing Equipments

Taiyou continue to invest the latest technology machines, such as MAKINO CNC, MAKINO/SODICK EDM, GF EDW etc.. we’re able to manufacture the products as your requirements, in a timeline that works for you.

Capabilities include custom parts with diameters ranging from 0.2 to 220 mm, lengths up to 1000mm, with tolerances down to +/-0.001mm, coaxiality 0.003 mm, circularity 0.0015 mm, surface finishes as best as Ra0.025.

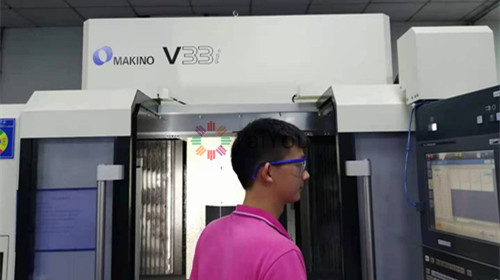

CNC Milling

Makino V33I (Japan)/Gentiger(Taiwan)

With a CNC machining center which works in high-speed upto 20,000 RPM, Taiyou precision is able to produce superior precision (±0.005mm), and can grind to even tighter tolerances. We can hard mill and hard turn materials in any heat treated condition, even when hardness is above HRC 60.
The max size we can operate is 1000*550*450mm. Tolerances of +/- .005mm can be held on our Gentiger CNC machining center. Our technician can operate two or more CNC machines simultaneously , allowing faster throughput and reduce human labor cost.

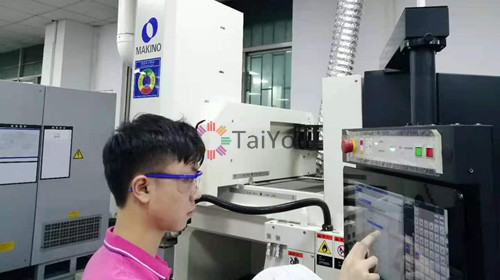

Sinker EDM

Makino (Japan)

Sinker EDM is the method of choice for difficult to machine materials and features that cannot be machined any other way. Tolerances of +/- .002mm can be held on our Makino Sinker EDM, which can accommodate parts of 450*300*320 mm Max.

Unique Cavity Shapes
Sharp Internal Corners
Small Holes
Works for any conductive material and some non-conductive material, Difficult-to-machine material

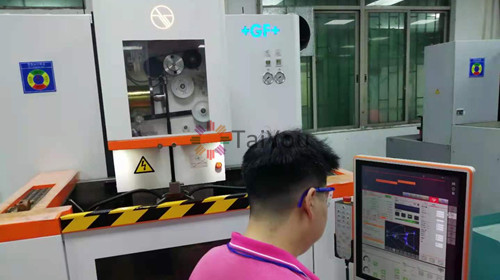

EDW Cutting

Sodick (Japan )/ GF (Switzerland)

Wire EDW is the most precise and common method for making die components. Wire EDM can cut nearly any conductive material. Tolerances of +/- .002mm can be held on our Sodick wire EDMs, which can accommodate parts of 330*240*230 mm Max.

Tight tolerance(+/- .002mm or better)through holes and cutouts
Square corners and shapes that can’t be machined
Tapered holes and slots

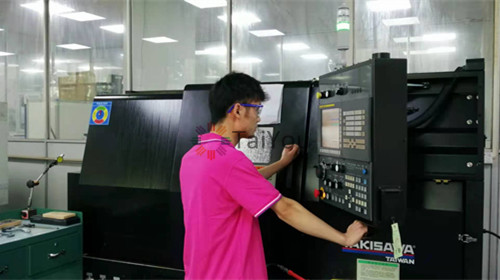

CNC Turning

Longze (Taiwan)

Our turning machines can feed material ranging from 1.0mm up to 320mm in diameter. We specialize in unique geometries such as face grooving, tapered turning, knurling, grooving, spherical radius, threading, drilling, precision turning, and boring with tolerances as close to +/- 0.005mm. Hard turning of max HRC68 is achievable.

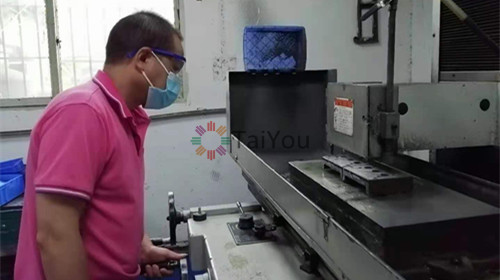

Surface Grinding

Jiande (Taiwan)/Wangpan (Taiwan)

We have both automatic and manual surface grinders to easily handle a large variety of materials and hardness. Precision up to 0.002mm and max size we can handle is 800*600*200mm.

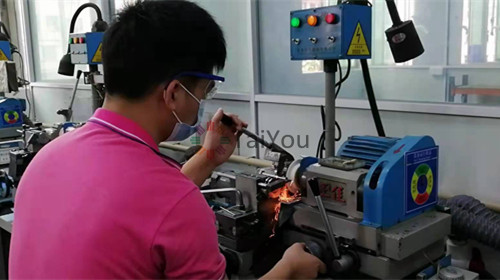

ID/OD Cylindrical grinding

Zhengjia (Taiwan)

Our precision cylindrical grinding processes include angle, contour, deep-hole, flat, high-speed, radii, taper and wet grinding.

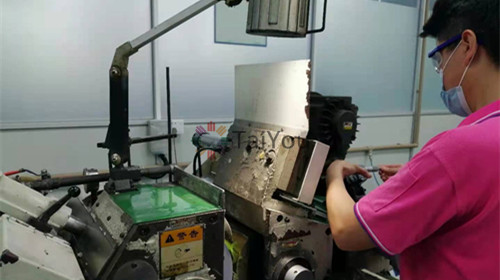

Centerless Grinding

Jianhe (Taiwan)

Unlike center-type or chucker-type grinding, Centerless grinding does not require center holes, drivers or workhead fixtures. This allows high through-put since parts can be quickly inserted and removed from the process.
Max size we can hanle is 0.35~60mm in diameter and 600mm in length, precision up to 0.001mm.

Tight tolerances
Excellent surface finish
Excellent straightness
Excellent roundness
Less stock compared to non-centerless grinding
Little work deflection (allows for grinding of long parts)
Ease of automation
Lower cycle times
